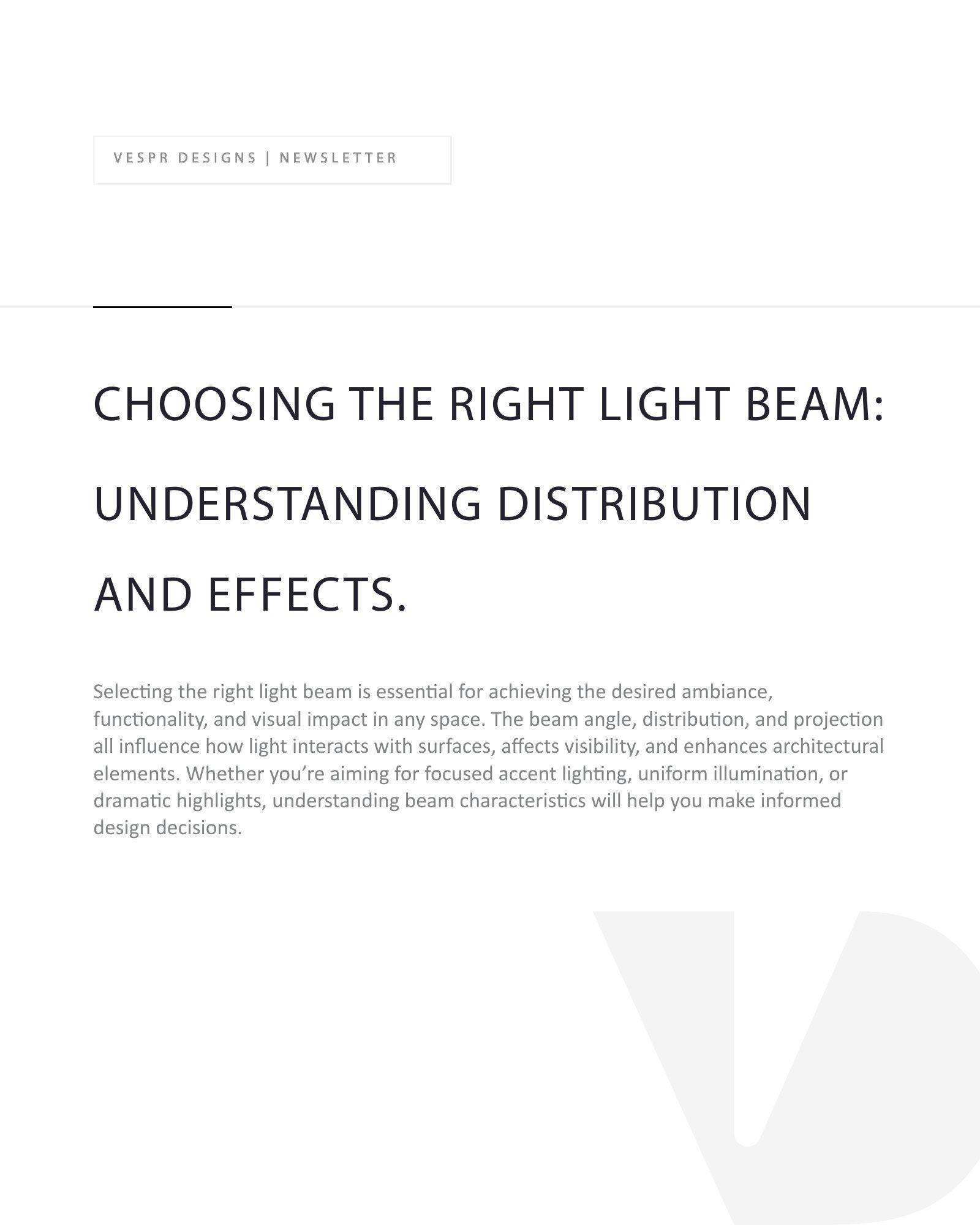

Choosing the Right Light Beam: Understanding Distribution and Effects

Selecting the right light beam is essential for achieving the desired ambiance, functionality, and visual impact in any space. The beam angle, distribution, and projection all influence how light interacts with surfaces, affects visibility, and enhances architectural elements. Whether you’re aiming for focused accent lighting, uniform illumination, or dramatic highlights, understanding beam characteristics will help you make informed design decisions.

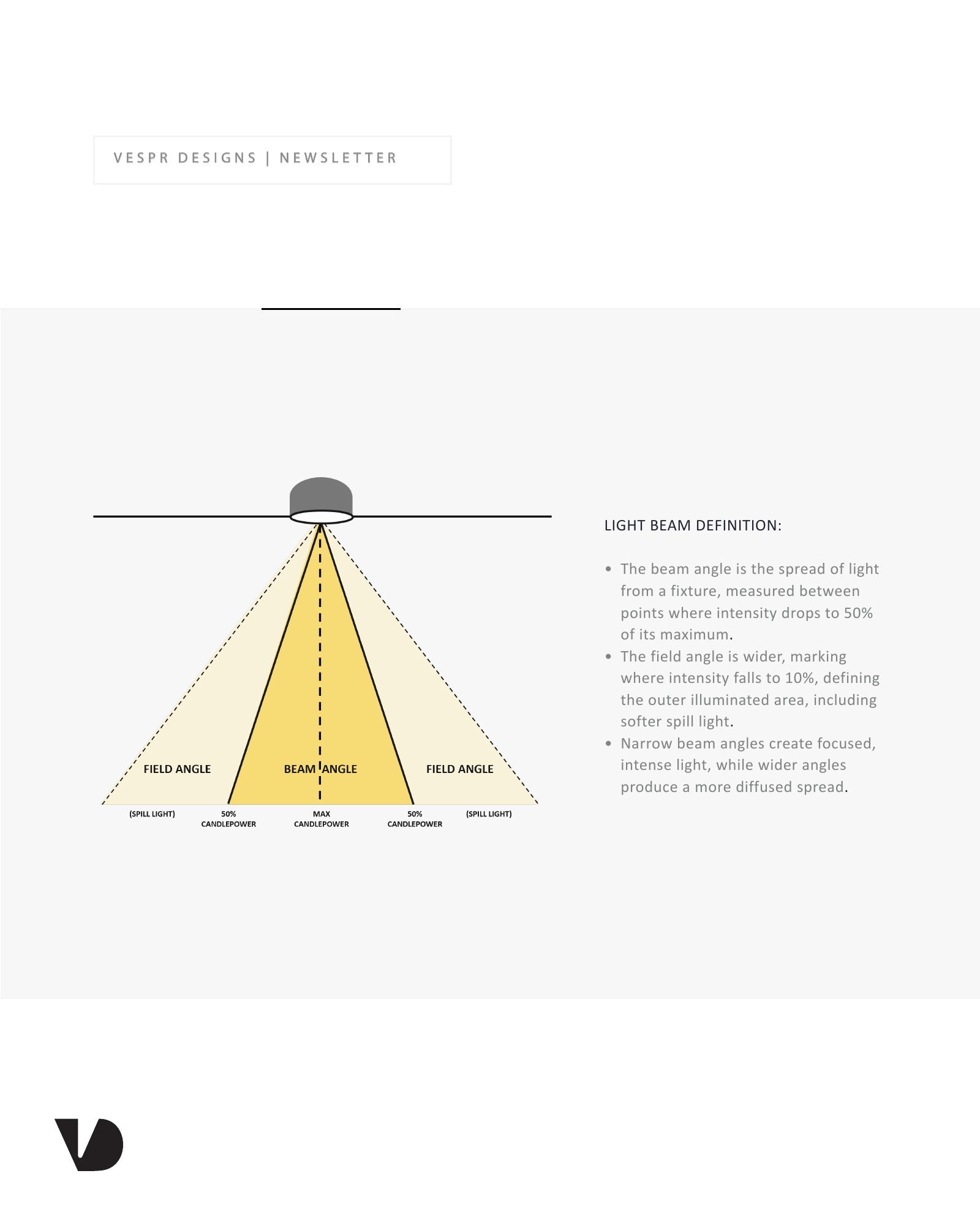

Light Beam Definition

The beam angle is the spread of light from a fixture, measured between points where intensity drops to 50% of its maximum.

The field angle is wider, marking where intensity falls to 10%, defining the outer illuminated area, including softer spill light.

Narrow beam angles create focused, intense light, while wider angles produce a more diffused spread.

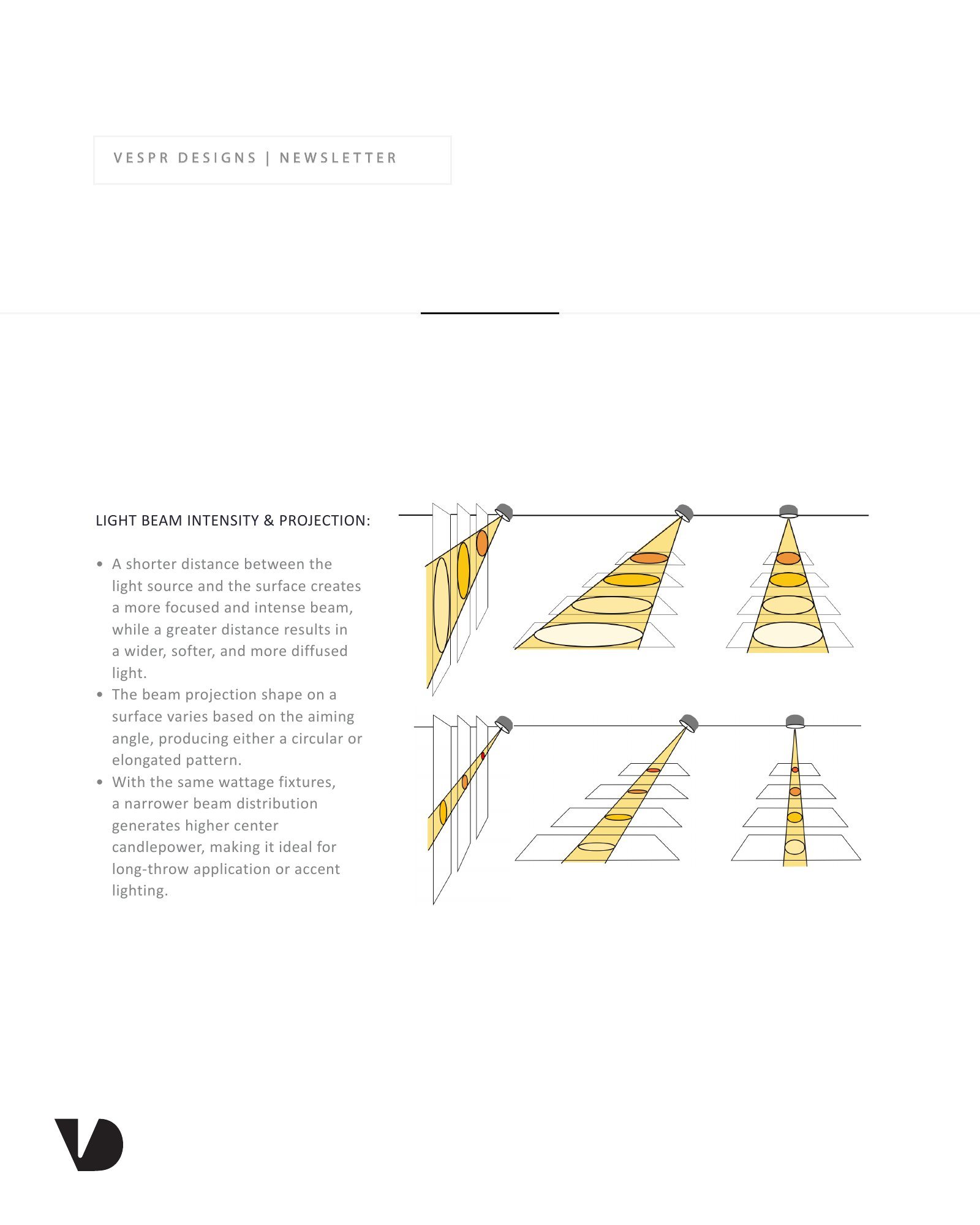

Light Beam Intensity & Projection

A shorter distance between the light source and the surface creates a more focused and intense beam, while a greater distance results in a wider, softer, and more diffused light.

The beam projection shape on a surface varies based on the aiming angle, producing either a circular or elongated pattern.

With the same wattage fixtures, a narrower beam distribution generates higher center candlepower, making it ideal for long-throw applications or accent lighting.

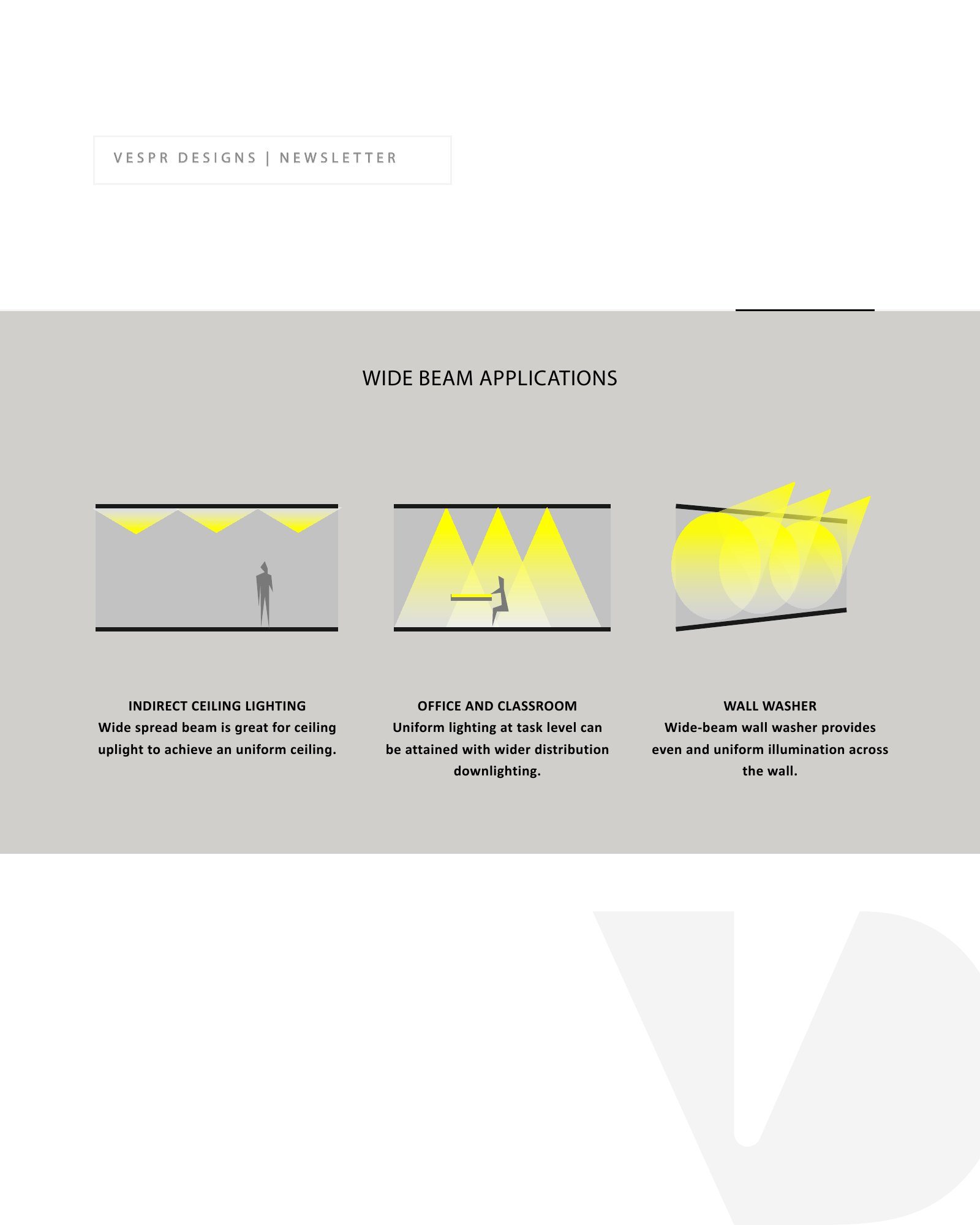

Wide Beam Applications

Indirect ceiling lighting: A wide-spread beam is great for ceiling uplight to achieve a uniform ceiling.

Office and classroom: Uniform lighting at task level can be attained with wider-distribution downlighting.

Wall washer: A wide-beam wall washer provides even and uniform illumination across the wall.

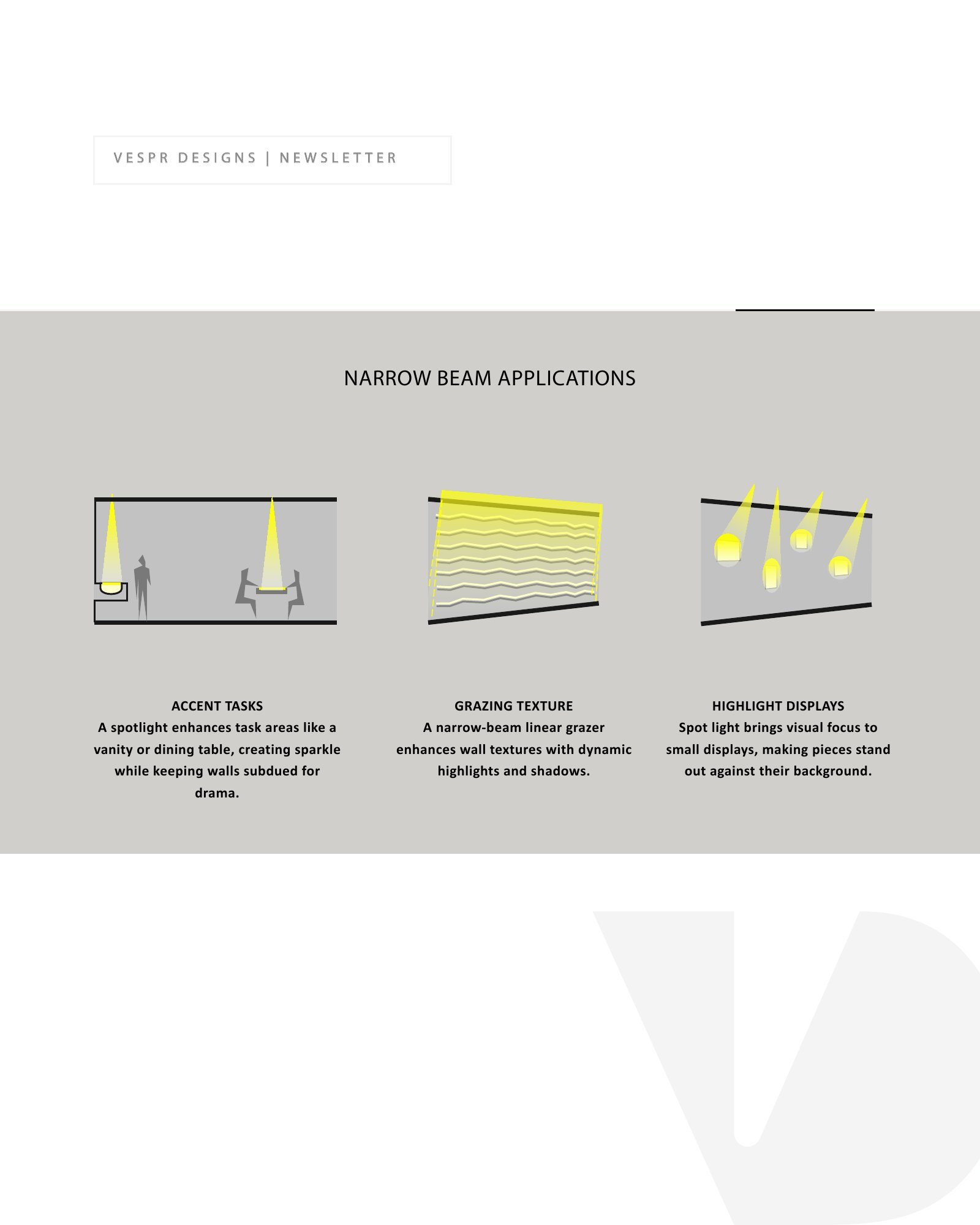

Narrow Beam Applications

Accent tasks: A spotlight enhances task areas like a vanity or dining table, creating sparkle while keeping walls subdued for drama.

Grazing texture: A narrow-beam linear grazer enhances wall textures with dynamic highlights and shadows.

Highlight displays: A spotlight brings visual focus to small displays, making pieces stand out against their background.
